Product Name

产品名称

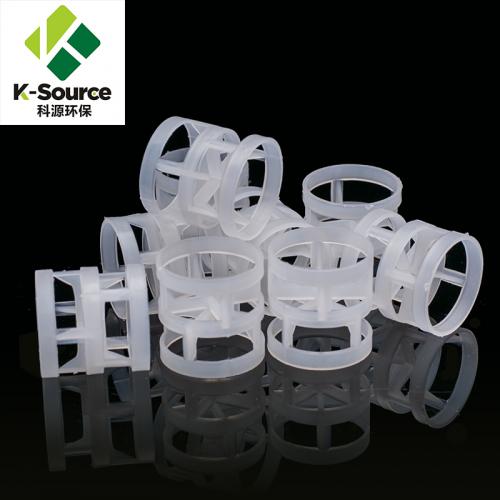

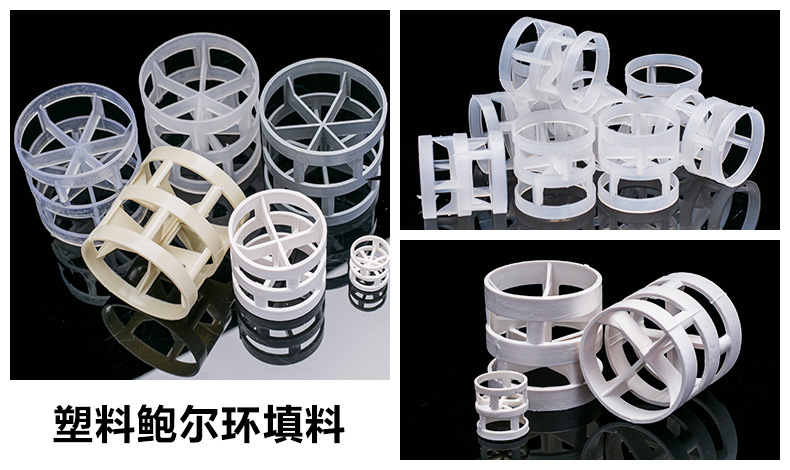

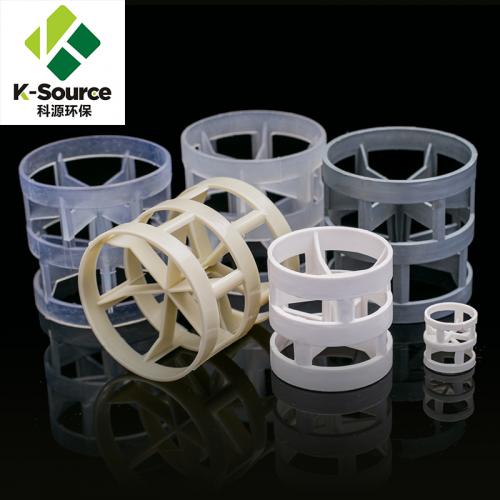

Plastic Pall Ring

塑料鲍尔环

Material

材质

PP/RPP/PVC/CPVC/PVDF/PTFE,etc

Life Span

使用寿命

>3 years

Size

尺寸

mm

Surface Area

m2/m3

比表面积

Void  Volume

%

空隙率

Packing Number

pieces/ m3

  堆积个数

Packing Density

Kg/m3

堆积重量

Dry Packing Factor

m-1

干填料因子

3/5”

16*16*1

188

91

170000

85

275

1”

25*25*1.2

175

90

53500

69

239

1-1/2”

38*38*1.4

115

89

15800

69

220

2”

50*50*1.5

93

90

6500

52

127

3”

76*76*2.6

73.2

92

1927

48

94

4”

100*100*3

52.8

94

1000

48

82

Feature

性能

 High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.

空隙率大、压降低、传质单元高度低、 泛点高、 气液接触充分 、 比重小、 传质效率高

Advantage

优点

1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability.特殊的结构使其流通量大、压降低、机械强度好。
2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload.较强的耐腐蚀性能、空隙率大、节能环保、成本低、比重轻装卸容易。

Application

应用领域

These various plastic tower packing are widely used in petroleum and chemical,alkali chloride,gas and environmental protection industries with max. temperature of 280°.

塑料散堆填料的***大使用温度为280摄氏度，广泛用于石油，化工，氯碱，煤气，环保等行业的填料塔里。
